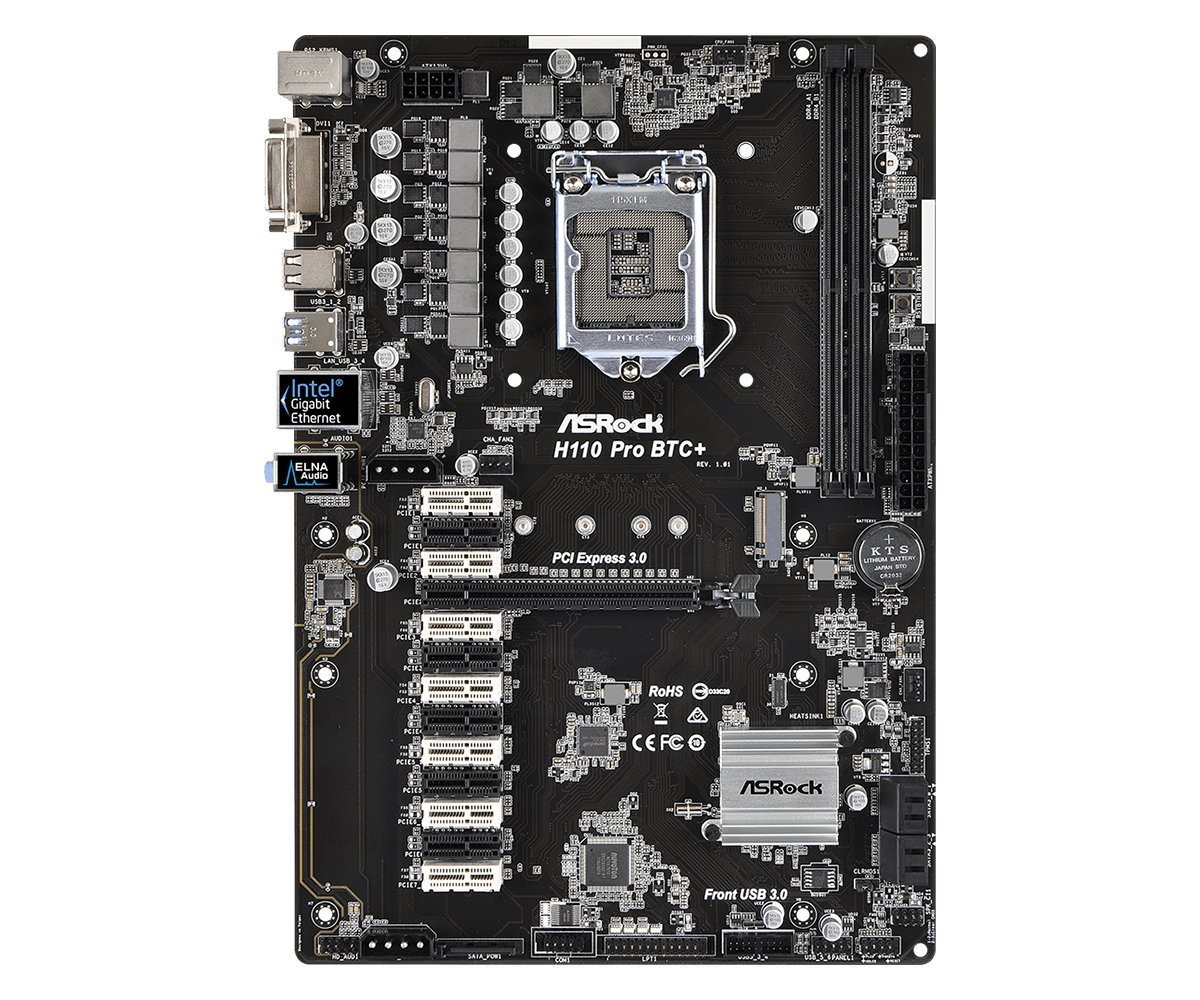

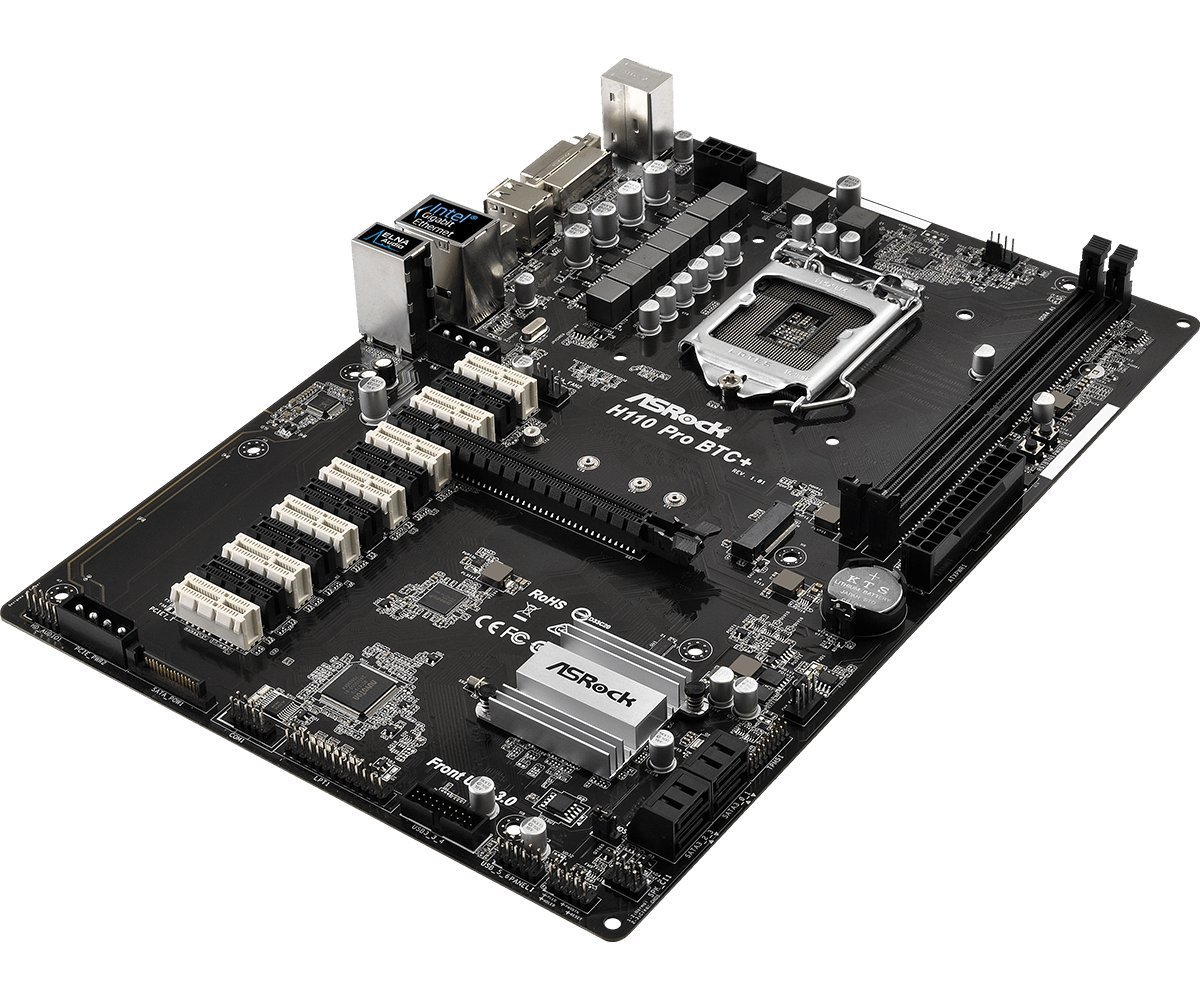

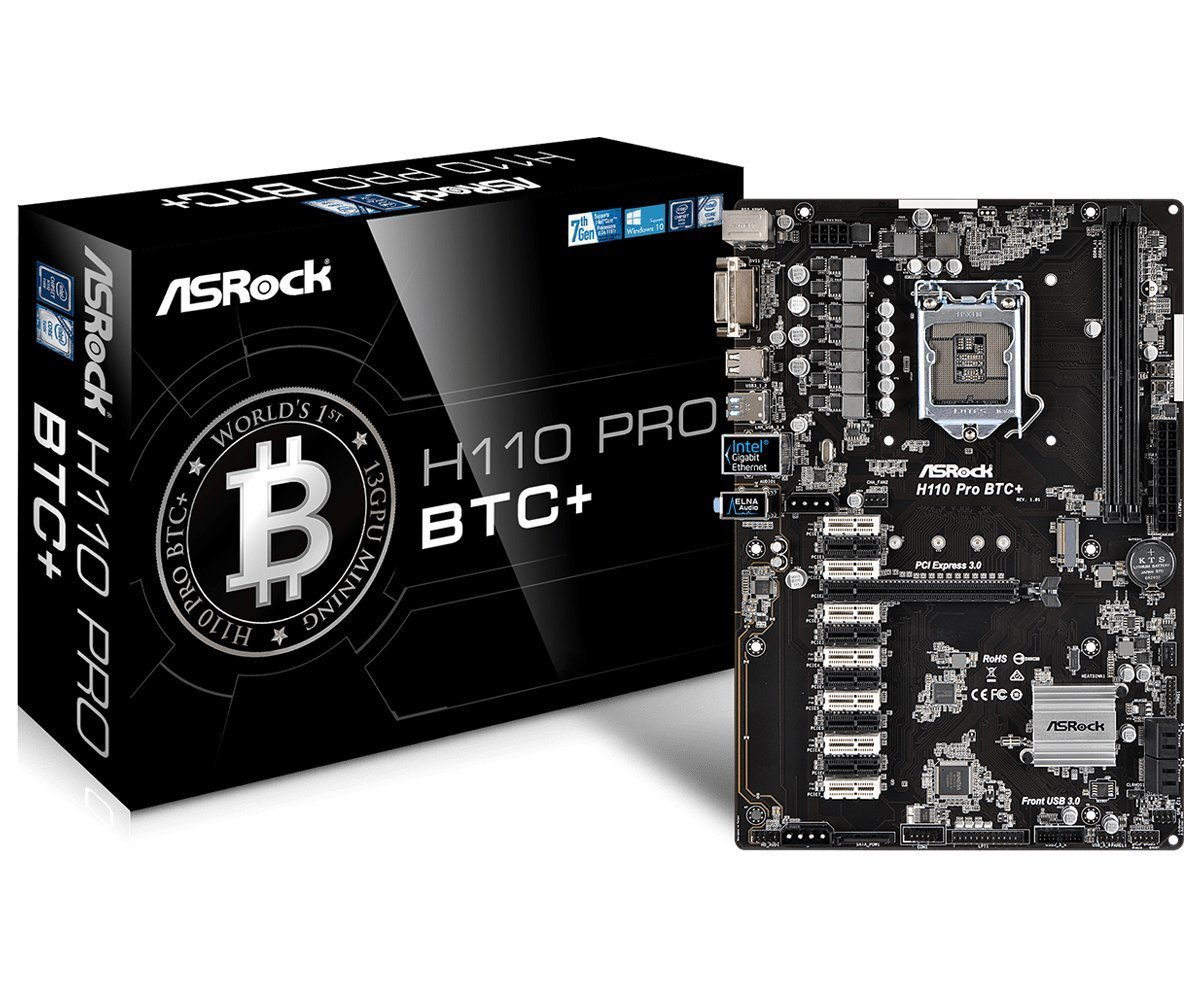

1151 ASRock H110 PRO BTC+
Šifra artikla: 86994
- Opis
- Tehnička dokumentacija
- Komentari
| Procesorsko ležište | Socket 1151 |
| Čipset | H110 |
| Memorijski slotovi | Dual Channel DDR4 Memory Technology 2 x DDR4 DIMM Slots Supports DDR4 2400/2133 non-ECC, un-buffered memory |
| Slotovi | 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode) 12 x PCI Express 2.0 x1 Slots |
| Skladišni interfejs | 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug 1 x M.2 Socket, supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module |
| Mrežni adapter | Gigabit LAN 10/100/1000 Mb/s Giga PHY Intel® I219V |
| Audio | 7.1 CH HD Audio (Realtek ALC887 Audio Codec) |

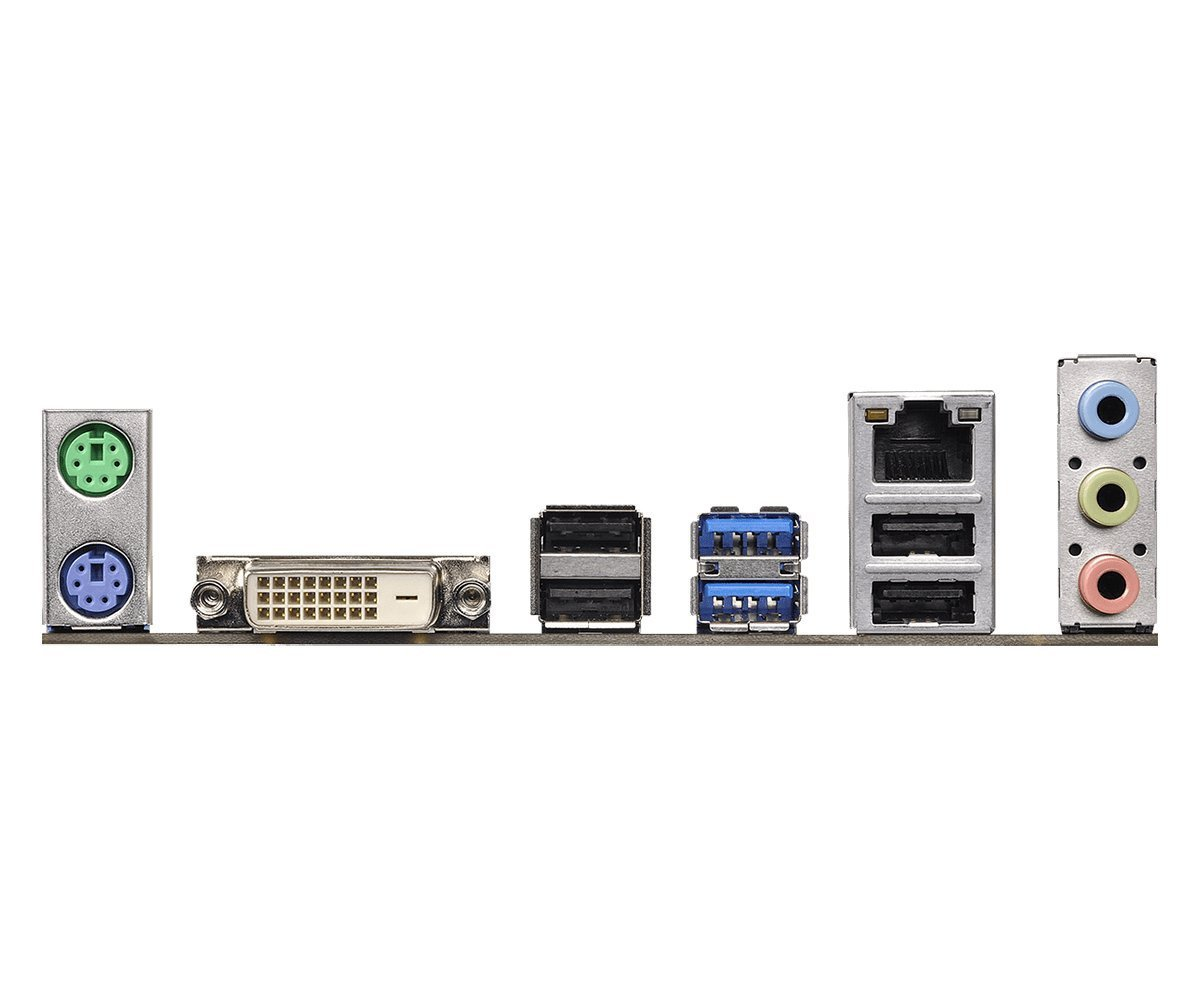

| Povezivanje | 1 x PS/2 Mouse Port 1 x PS/2 Keyboard Port 1 x DVI-D Port 4 x USB 2.0 Ports (Supports ESD Protection) 2 x USB 3.0 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone |
| Interni priključci | 1 x Print Port Header 1 x COM Port Header 1 x TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin)* 2 x Chassis Fan Connectors (4-pin) 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 2 x PCIe Power Connectors-1 x SATA Power Connector 1 x Front Panel Audio Connector 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection) |
| Format | ATX |
| Integrisana grafika | Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz Supports Full HD 1080p Blu-ray (BD) playback with DVI-D Port |
| Reklamacioni period | Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača |
