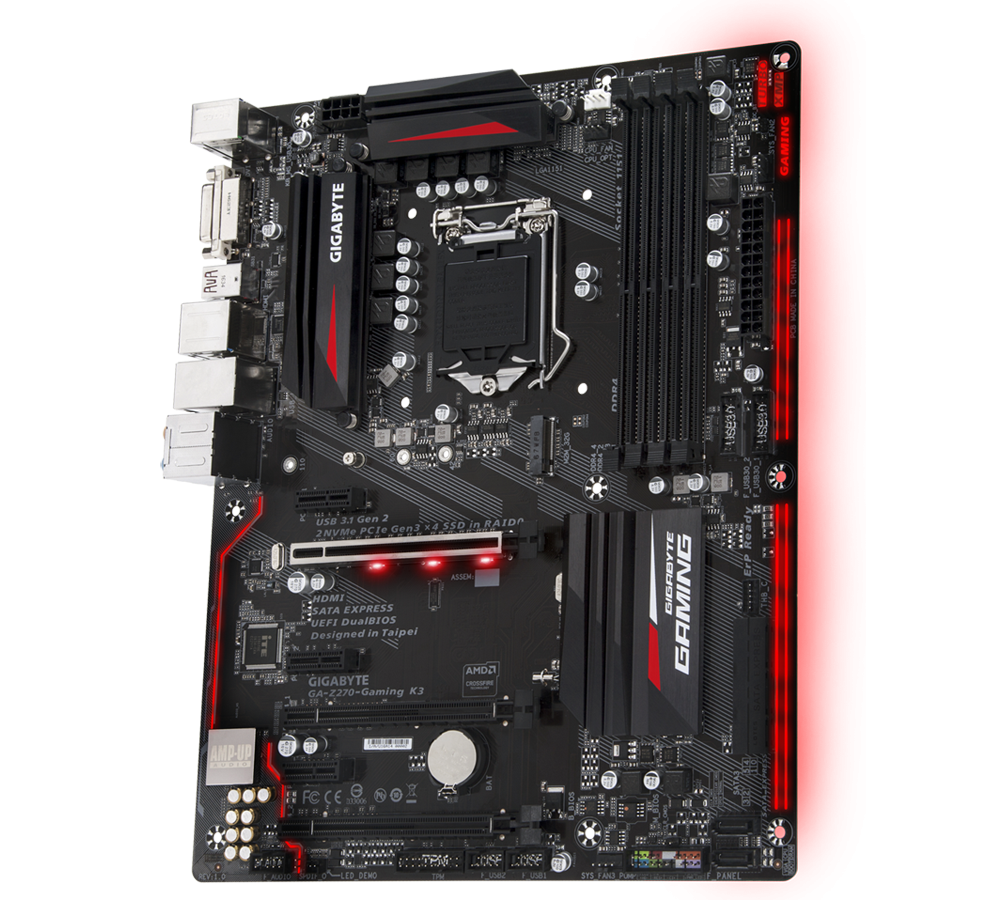

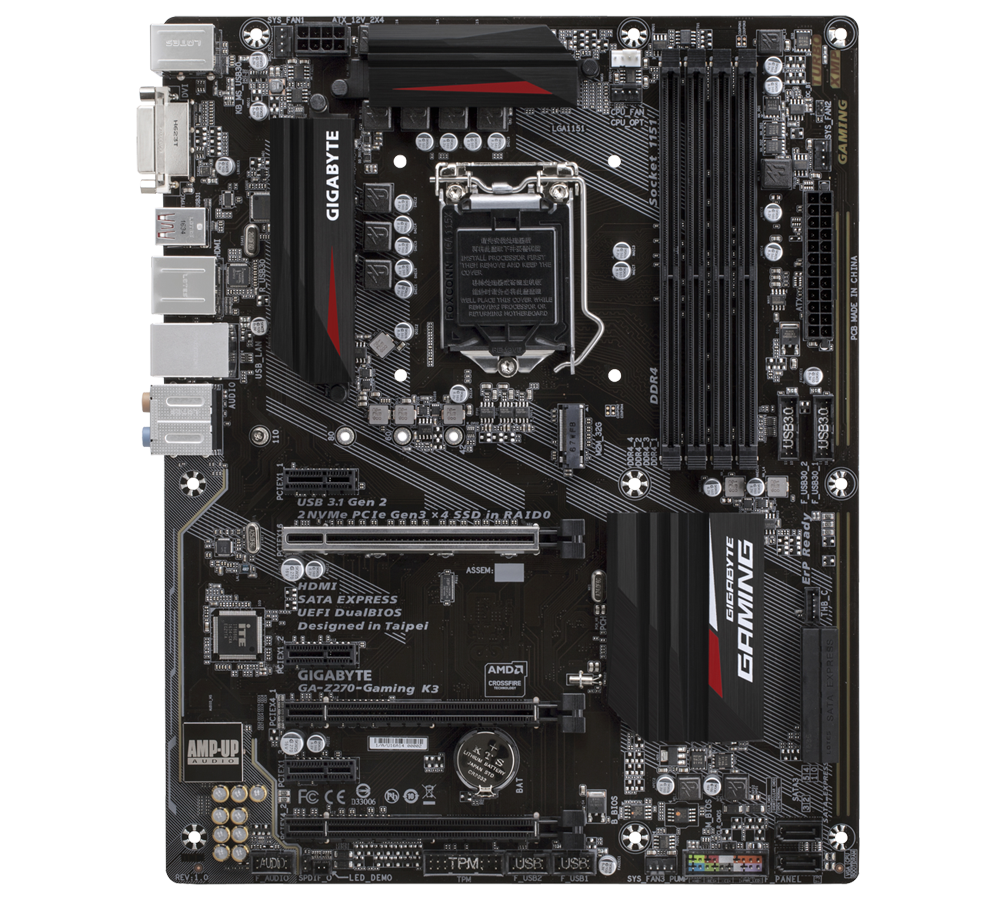

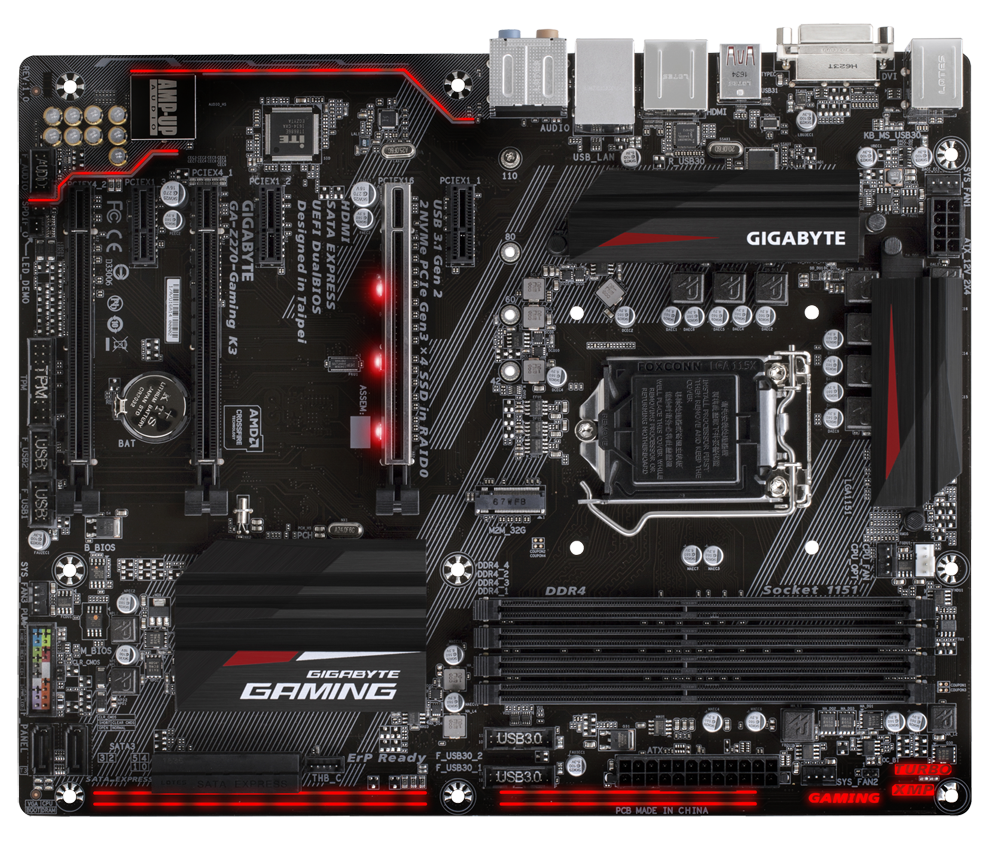

1151 Gigabyte GA-Z270-Gaming K3
Šifra artikla: 82027
- Opis
- Tehnička dokumentacija
- Komentari
| Procesorsko ležište | Intel 1151 |
| Čipset | Intel Z270 |
| Memorijski slotovi | 4 x DDR4 DIMM ležišta, maksimalno podržano 64GB Dvo-kanalna memorijska arhitektura Podržava DDR4 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400(O.C.) / 2133 MHz memorijske module Podržava ECC UDIMM 1Rx8/2Rx8 memorijske module (operate in non-ECC mode) Podržava non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memorijske module Podržava Extreme Memory Profile (XMP) memorijske module |
| Slotovi | 1 x PCI Express x16 slot, running at x16 (PCIEX16) 2 x PCI Express x16 slots, running at x4 (PCIEX4_1 and PCIEX4_2) 3 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.) |
| Skladišni interfejs | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) 2 x SATA Express connectors Podržava RAID 0, RAID 1, RAID 5 i RAID 10 |
| Mrežni adapter | Killer™ E2500 LAN chip (10/100/1000 Mbit) |
| Audio | Realtek® ALC1220 codec Audio visoke definicije 2/4/5.1/7.1-channel Podržava S/PDIF izlaz |

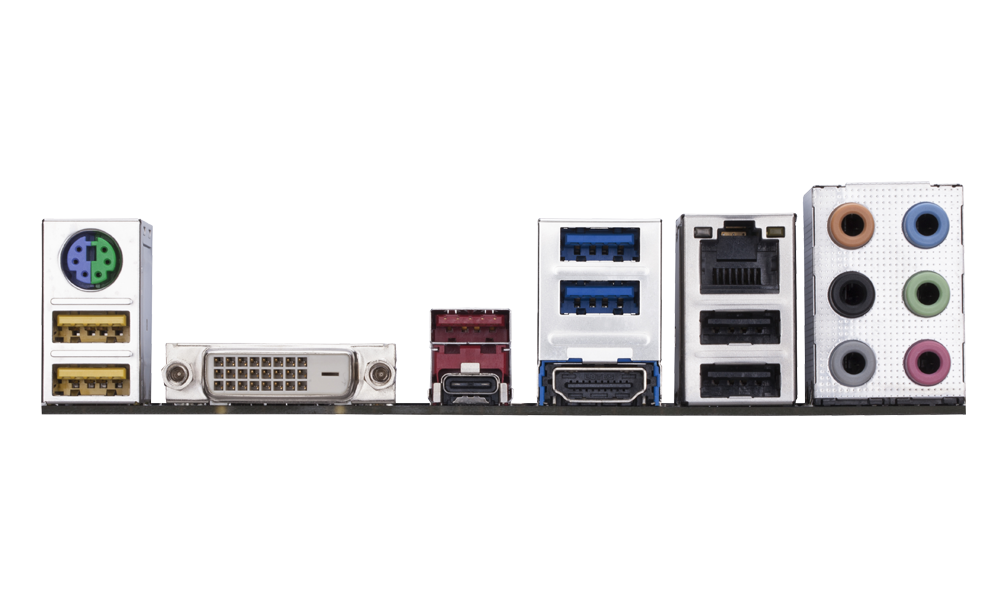

| Povezivanje | 1 x PS/2 keyboard/mouse port 1 x DVI-D port 1 x HDMI port 1 x USB Type-C™ port, with USB 3.1 Gen 2 support 1 x USB 3.1 Gen 2 Type-A port (red) 4 x USB 3.1 Gen 1 ports 2 x USB2.0/1.1 ports 1 x RJ-45 port 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In) |
| Interni priključci | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x M.2 Socket 3 connector 2 x SATA Express connectors 6 x SATA 6Gb/s connectors 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 1 x system fan/water cooling pump header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 2 x USB 3.1 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header 1 x Thunderbolt™ add-in card connector 1 x Clear CMOS jumper |
| Format | ATX |
| Integrisana grafika | Integrisani grafički procesor - Intel® HD Graphics podrška: 1 x DVI-D Port, podržava maksimalnu rezoluciju od 1920x1200@60 Hz 1 x HDMI port, podržava maksimalnu rezoluciju od 4096x2160@24 Hz Maksimalna deljena memorija 1GB |
| Reklamacioni period | Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača |
Ocena:
