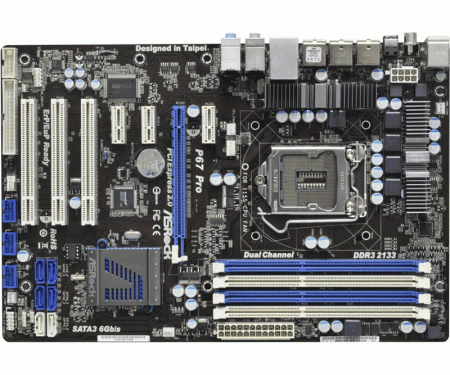

1155 ASRock P67 PRO
Šifra artikla: 17437
- Opis
- Tehnička dokumentacija
- Komentari
| Procesorsko ležište | 1155 | ||
| Čipset | Intel P67 | ||
| Memorijski slotovi | 4 x DDR3 DIMM slots DDR3 2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory up to Max 32GB | ||
| Slotovi | - 1 x PCI Express 2.0 x16 slot
(blue @ x16 mode) - 3 x PCI Express 2.0 x1 slots - 3 x PCI slots | ||
| Skladišni interfejs | 4 x SATA2 3.0 Gb/s connectors, 2 x SATA3 6.0 Gb/s connectors | ||
| Mrežni adapter | PCIE x1 Gigabit RJ45 10/100/1000 Mb/s | ||
| Audio | 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec) | ||
| Povezivanje | - 1 x PS/2 Mouse Port - 1 x PS/2 Keyboard Port - 1 x Coaxial SPDIF Out Port - 1 x Optical SPDIF Out Port - 8 x Ready-to-Use USB 2.0 Ports - 1 x RJ45 RJ45 Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone | ||
| Interni priključci | - 1 x Floppy connector - 1 x IR header - 1 x COM port header - 1 x HDMI_SPDIF header - 1 x Power LED header - CPU/Chassis/Power FAN connector - 24 pin ATX power connector - 8 pin 12V power connector - Front panel audio connector - 3 x USB 2.0 headers (support 6 USB 2.0 ports) | ||
| Format | ATX Form Factor | ||
| Ostalo | |||
| Saobraznost | Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača |
