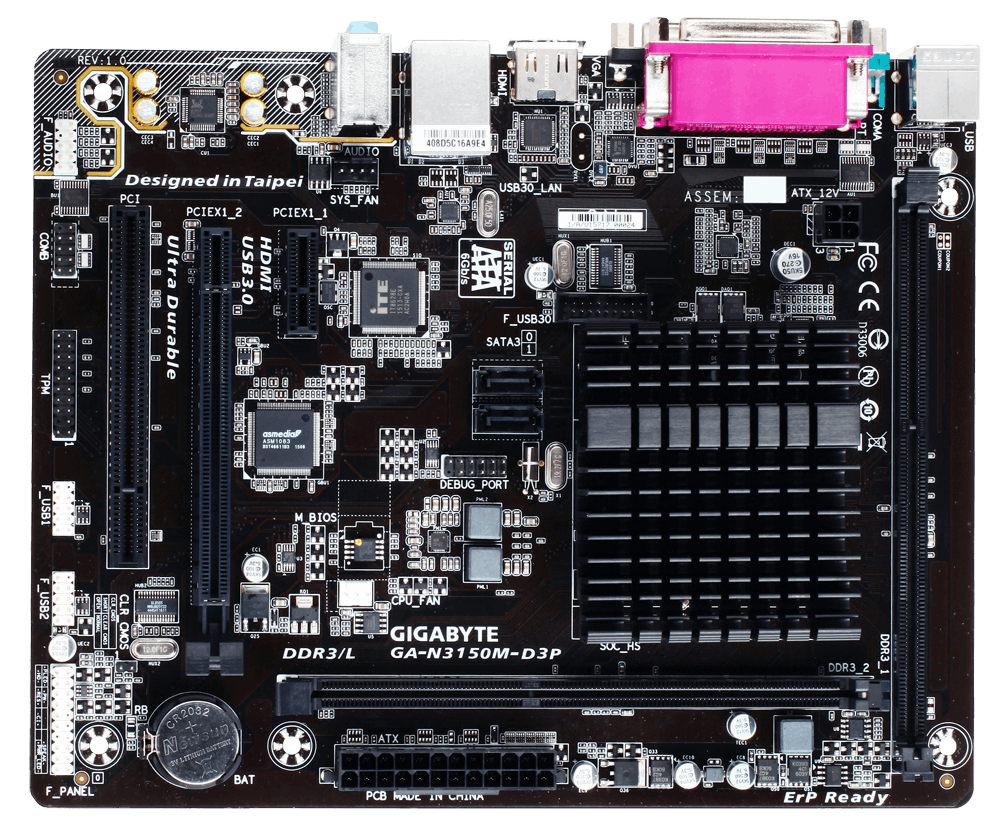

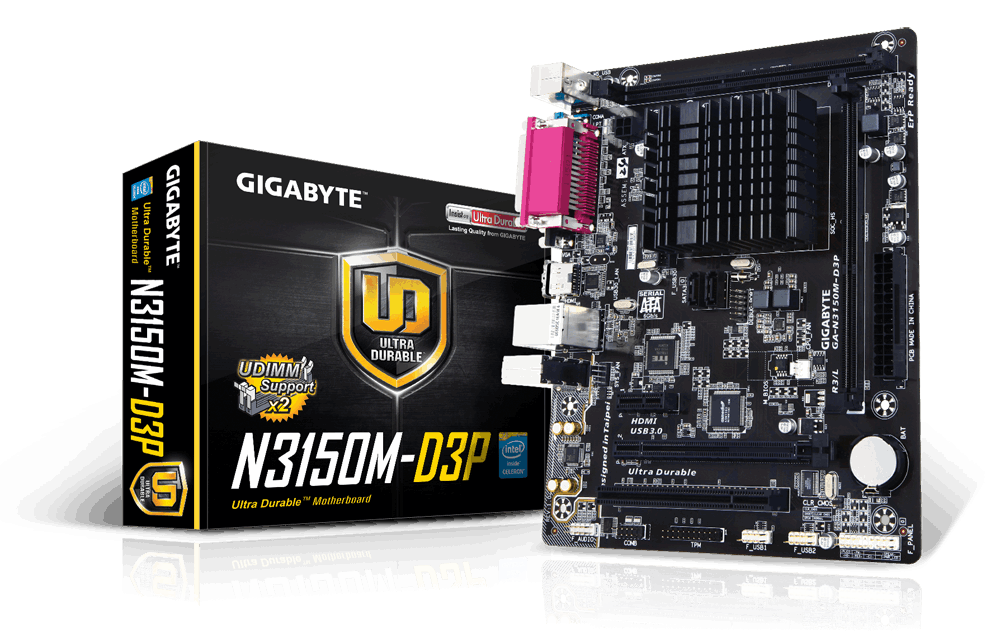

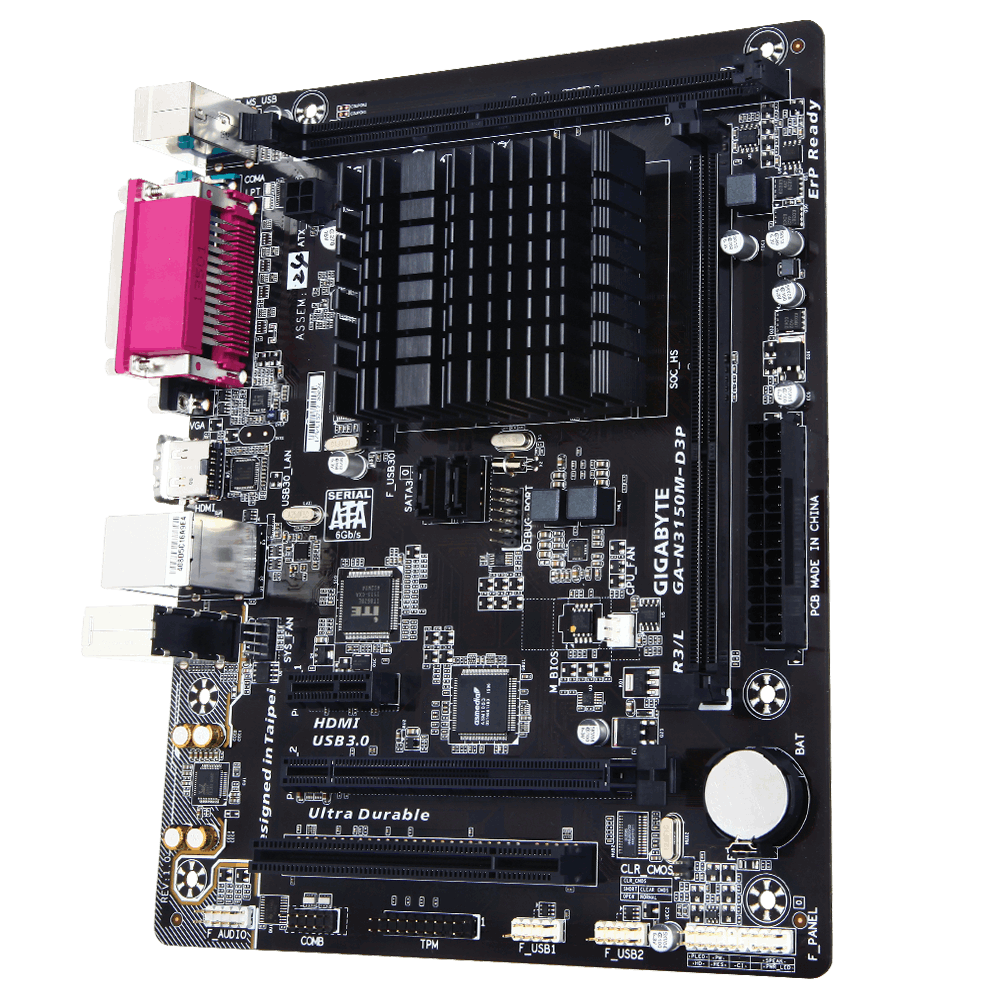

1170 Gigabyte GA-N3150M-D3P
Šifra artikla: 68128
- Opis
- Tehnička dokumentacija
- Komentari
| Procesorsko ležište | Built in with an Intel Qual-Core Celeron N3150 SoC (1.6 GHz) |
| Memorija | 2 MB Cache |
| Memorijski slotovi | 2 x DDR3 DIMM sockets supporting up to 8 GB of system memory Dual channel memory architecture Support for DDR3/DDR3L 1600/1333 MHz memory modules Support for non-ECC memory modules |
| Slotovi | 1 x PCI Express x4 slot, running at x1 (PCIEX1_2) 1 x PCI Express x1 slot, running at x1 (PCIEX1_1) 1 x PCI slot |
| Skladišni interfejs | 2 x SATA 6Gb/s connectors |
| Mrežni adapter | Realtek GbE RJ45 chip (10/100/1000 Mbit) |
| Audio | Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel |

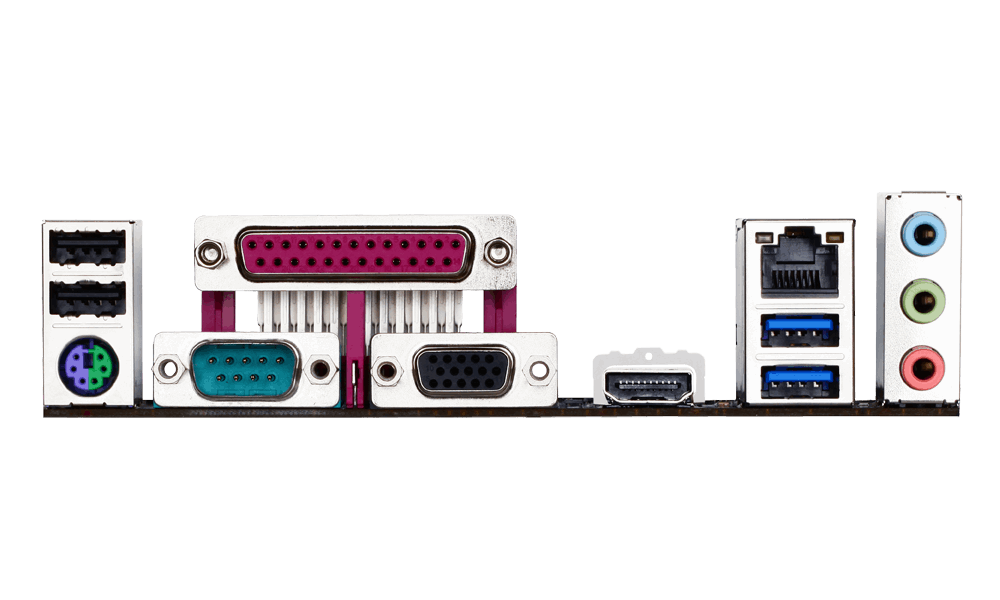

| Povezivanje | 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 1 x serial port 1 x parallel port 2 x USB3.0/2.0 port 2 x USB 2.0/1.1 port 1 x RJ45 port 3 x audio jacks (Line In, Line Out, Mic In) |
| Interni priključci | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 2 x SATA 6Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x USB 3.0/2.0 header 2 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header 1 x serial port header 1 x Clear CMOS jumper |
| Format | Micro ATX Form Factor; 22.6cm x 18.0cm |
| Integrisana grafika | 1 x D-Sub port, supporting a maximum resolution of 1920x1200 @60 Hz 1 x HDMI port, supporting a maximum resolution of 3840x2160 @30 Hz Maximum shared memory of 512 MB |
| Reklamacioni period | Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača |
