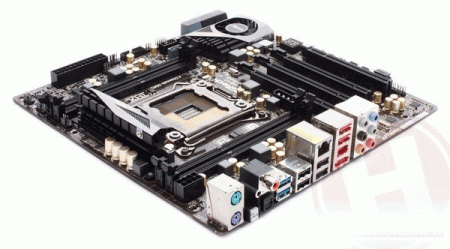

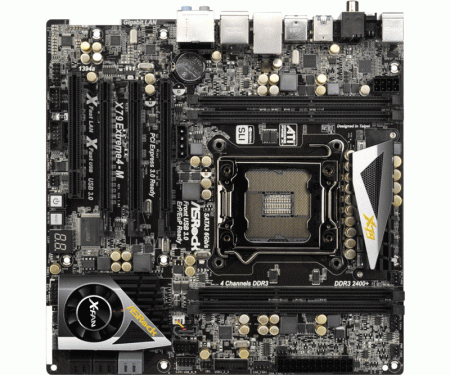

2011 ASRock X79 EXTREME4-M
Šifra artikla: 17443
- Opis
- Tehnička dokumentacija
- Komentari
| Procesorsko ležište | 2011 | ||
| Čipset | Intel X79 | ||
| Memorijski slotovi | 4 x DDR3 DIMM slots | ||
| Slotovi | 3 x PCI Express 3.0 x16 slots
(PCIE1/PCIE3: x16 mode; PCIE2: x8 mode) 1 x PCI slot Supports AMD Quad CrossFireX™ and CrossFireX™ Supports NVIDIA® Quad SLI™ and SLI™ | ||
| Skladišni interfejs | 2 x SATA3 6.0 Gb/s connectors by
Intel® X79, support RAID (RAID 0, RAID 1, RAID 5, RAID 10 and
Intel® Rapid Storage 3.0), NCQ, AHCI and "Hot Plug" functions 1 x SATA3 6.0 Gb/s connector by ASMedia ASM1061, supports NCQ, AHCI and "Hot Plug" functions | ||
| Mrežni adapter | PCIE x1 Gigabit RJ45 10/100/1000 Mb/s | ||
| Audio | 7.1 CH HD Audio with Content Protection (Realtek ALC898 Audio Codec) | ||
| Povezivanje | I/O Panel - 1 x PS/2 Mouse Port - 1 x PS/2 Keyboard Port - 1 x Coaxial SPDIF Out Port - 1 x Optical SPDIF Out Port - 6 x Ready-to-Use USB 2.0 Ports - 1 x eSATA3 Connector - 2 x Ready-to-Use USB 3.0 Ports - 1 x RJ45 RJ45 Port with LED (ACT/LINK LED and SPEED LED) - 1 x IEEE 1394 Port - 1 x Clear CMOS Switch with LED - HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone | ||
| Interni priključci | - 4 x SATA2 3.0 Gb/s connectors,
support RAID (RAID 0, RAID 1, RAID 5, RAID 10 and Intel® Rapid
Storage 3.0), NCQ, AHCI and Hot Plug functions - 3 x SATA3 6.0 Gb/s connectors - 1 x IR header - 1 x CIR header - 1 x COM port header - 1 x HDMI_SPDIF header - 1 x IEEE 1394 header - 1 x Power LED header - CPU/Chassis/Power/SB FAN connector - 24 pin ATX power connector - 8 pin 12V power connector - SLI/XFire power connector - Front panel audio connector - 2 x USB 2.0 headers (support 4 USB 2.0 ports) - 1 x USB 3.0 header (supports 2 USB 3.0 ports) - 1 x Dr. Debug with LED | ||
| Format | Micro ATX | ||
| Ostalo | |||
| Saobraznost | Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača |
