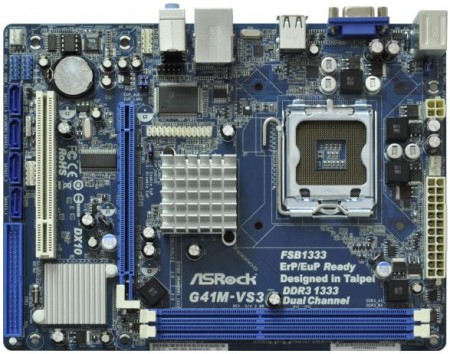

775 ASRock G41M-VS3 R2.0/BULK
Šifra artikla: 17429
- Opis
- Tehnička dokumentacija
- Komentari
| Procesorsko ležište | 775 | ||
| Čipset |
Intel G41 i Intel ICH7 | ||
| Memorijski slotovi | 2 x DDR3 DIMM slots | ||
| Slotovi | 1 x PCI Express x16 slot 1 x PCI slot | ||
| Skladišni interfejs | 4 x SATA2 3.0 Gb/s connectors (No support for RAID and "Hot Plug" functions) | ||
| Mrežni adapter | Atheros PCIEx1 RJ45 AR8152 10/100 Ethernet | ||
| Audio | 5.1 CH HD Audio (VIA VT1705 Audio Codec) | ||
| Povezivanje | I/O Panel - 1 x PS/2 Mouse Port - 1 x PS/2 Keyboard Port - 1 x VGA Port - 4 x Ready-to-Use USB 2.0 Ports - 1 x RJ45 RJ45 Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jack: Line in / Front Speaker / Microphone | ||
| Interni priključci | - 4 x SATA2 3.0 Gb/s connectors (No
support for RAID and "Hot Plug" functions) - 1 x ATA100 IDE connector (supports 2 x IDE devices) - 1 x Print port header - 1 x COM port header - CPU/Chassis FAN connector - 24 pin ATX power connector - 4 pin 12V power connector - Front panel audio connector - 2 x USB 2.0 headers (support 4 USB 2.0 ports) | ||
| Format | Micro ATX | ||
| Ostalo | |||
| Saobraznost | Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača |
