ASROCK H81 PRO BTC R2.0
Šifra artikla: 93367
- Opis
- Tehnička dokumentacija
- Komentari
| Podnožje | Intel 1150 |
| Čipset | Intel H81 |
| Format ploče | ATX |
| Podržani procesori | - Podržava četvrtu i novu četvrtu generaciju Intel® Core™ i7/i5/i3/Xeon®/Pentium®/Celeron® Processors (Socket 1150) - Digi Power design - 4 Power Phase design - Podržava Intel® Turbo Boost 2.0 Tehnologiju |
| Podržana memorija | DDR3 |
| Memorija | - Dvo-kanalna DDR3 Memory Technology - 2 x DDR3 DIMM Slots - Podržava DDR3 1600/1333/1066 non-ECC, un-buffered memory - Maksimalan kapacitet sistemske memorije: 16GB* - Podržava Intel® Extreme Memory Profile (XMP) 1.3 / 1.2 |
| Integirsana grafička kartica | - Podržava Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 4400/4600 - Pixel Shader 5.0, DirectX 11.1 - Maksimalna deljena memorija 512MB** - Dual Graphics Output: support HDMI and D-Sub ports by independent display controllers - Podržava HDMI Technology sa maksimalnom rezolucijom 1920x1200 @ 60Hz - Podržava D-Sub sa maksimalnom rezolucijom 1920x1200 @ 60Hz - Podržava Auto Lip Sync, Deep Color (12bpc), xvYCC i HBR (High Bit Rate Audio) sa HDMI Port-om (Compliant HDMI monitor is required) - Podržava HDCP sa HDMI Port-om - Podržava Full HD 1080p Blu-ray (BD) playback sa HDMI Port-om |
| Slotovi za proširenje | - 1 x PCI Express 2.0 x16 Slot (PCIE2: x16 mode) - 5 x PCI Express 2.0 x1 Slots |
| Sotrage | - 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug - 2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug |
| Mrežna kartica | - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111GR - Podržava Wake-On-WAN - Podržava Wake-On-LAN - Podržava Lightning/ESD Protection (ASRock Full Spike Protection) - Podržava LAN Cable Detection - Podržava Energy Efficient Ethernet 802.3az - Podržava PXE |
| Zvučna kartica | - 5.1 CH HD Audio (Realtek ALC662 Audio Codec) - Supports Surge Protection (ASRock Full Spike Protection) |

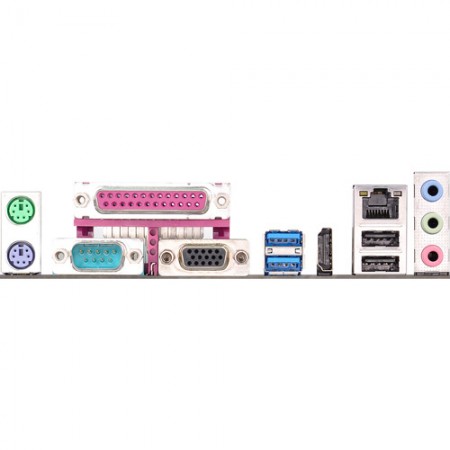

| Konektori na zadnjoj strani | - 1 x PS/2 Mouse Port - 1 x PS/2 Keyboard Port - 1 x Serial Port: COM1 - 1 x Parallel Port (ECP/EPP support) - 1 x D-Sub Port - 1 x HDMI Port - 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) - 2 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jack: Line in / Front Speaker / Microphone |
| Interni konektori | - 1 x IR Header - 1 x COM Port Header - 1 x Power LED Header - 1 x TPM Header - 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin) - 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin) - 1 x Power Fan Connector (3-pin) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 2 x PCIe Power Connectors - 1 x Front Panel Audio Connector - 1 x SPDIF Out connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) |
| Bios | - 32Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 1.1 Compliant wake up events - SMBIOS 2.3.1 support - CPU, DRAM, PCH 1.05V Voltage multi-adjustment |
| Ostalo | ASRock Super Alloy - High Density Glass Fabric PCB ASRock Full Spike Protection ASRock Live Update & APP Shop |
| Reklamacioni period | Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača |
