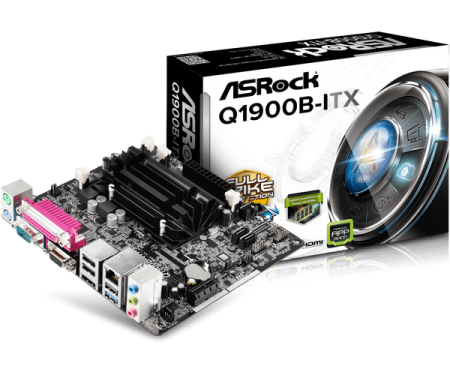

ASRock INTEL Q1900B-ITX MB + CPU
Šifra artikla: 56446
- Opis
- Tehnička dokumentacija
- Komentari
| Procesorsko ležište | Integrisani Intel Quad-Core J1900 (2GHz) |
| Čipset | |
| Memorijski slotovi | - Dual Channel DDR3/DDR3L Memory Technology - 2 x DDR3/DDR3L SO-DIMM Slots - Supports DDR3/DDR3L 1333/1066 non-ECC, un-buffered memory - Max. capacity of system memory: 16GB* |
| Slotovi | - 1 x PCI Express 2.0 x1 Slot |
| Skladišni interfejs | - 2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug |
| Mrežni adapter | - PCIE x1 Gigabit RJ45 10/100/1000 Mb/s - Realtek RTL8111GR |
| Audio | - 5.1 CH HD Audio (Realtek ALC662 Audio Codec) - Supports Surge Protection (ASRock Full Spike Protection) |
| Povezivanje | - 1 x PS/2 Mouse Port - 1 x PS/2 Keyboard Port - 1 x Parallel Port (ECP/EPP Support) - 1 x Serial Port: COM1 - 1 x D-Sub Port - 1 x HDMI Port - 3 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x USB 3.0 Port (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x RJ45 RJ45 Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Interni priključci | - 1 x 3W Audio AMP Output Wafer Header - 1 x COM Port Header - 1 x TPM Header - 1 x Chassis Intrusion Header - 1 x CPU Fan Connector (3-pin) - 1 x Chassis Fan Connector (3-pin) - 1 x 24 pin ATX Power Connector - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) |
| Format | |
| Integrisana grafika | - Intel® 7th generation (Gen 7) graphics - DirectX 11.0, Pixel Shader 5.0 - Supports HDMI Technology with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz |
| Reklamacioni period | Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača |
