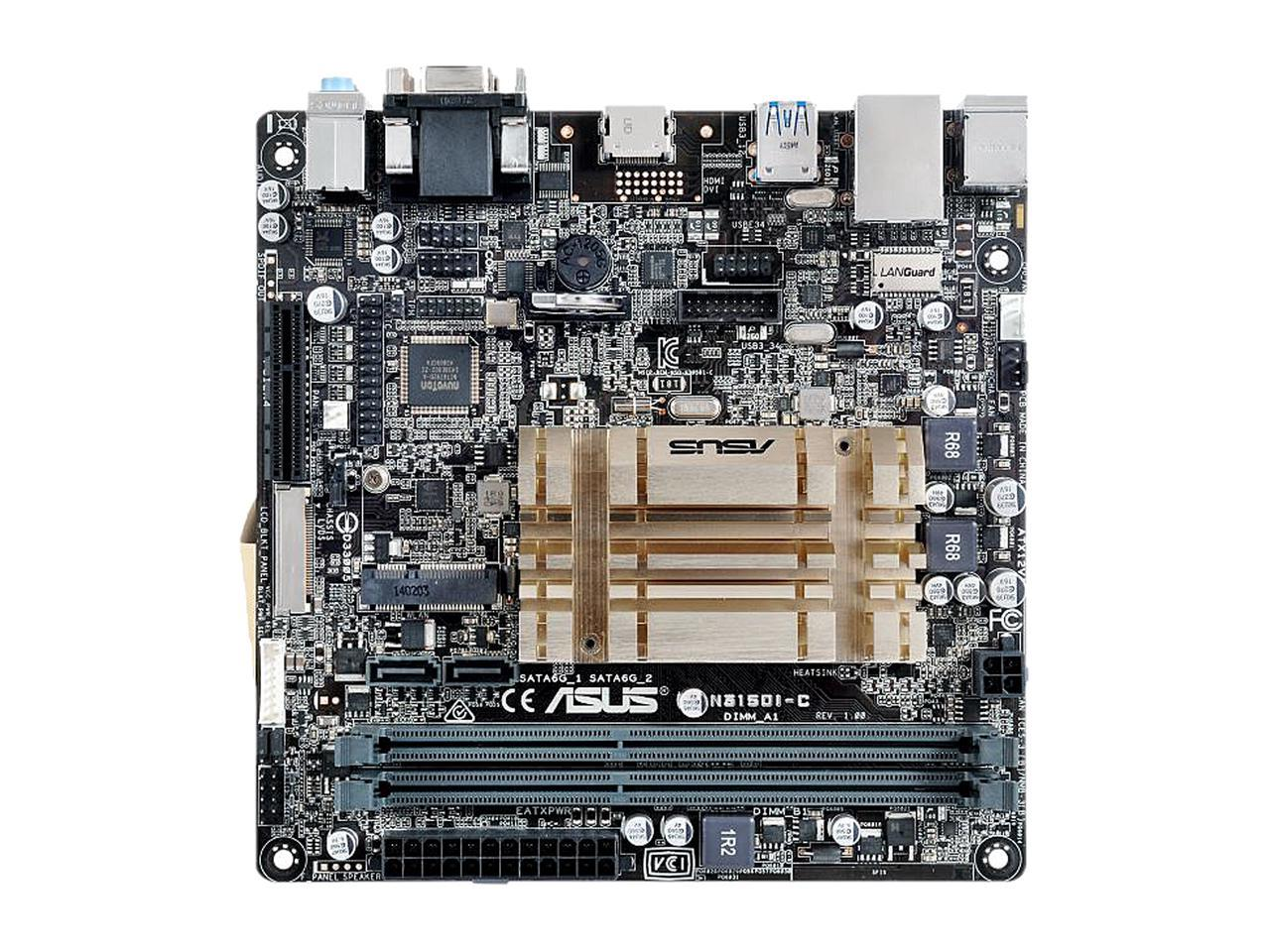

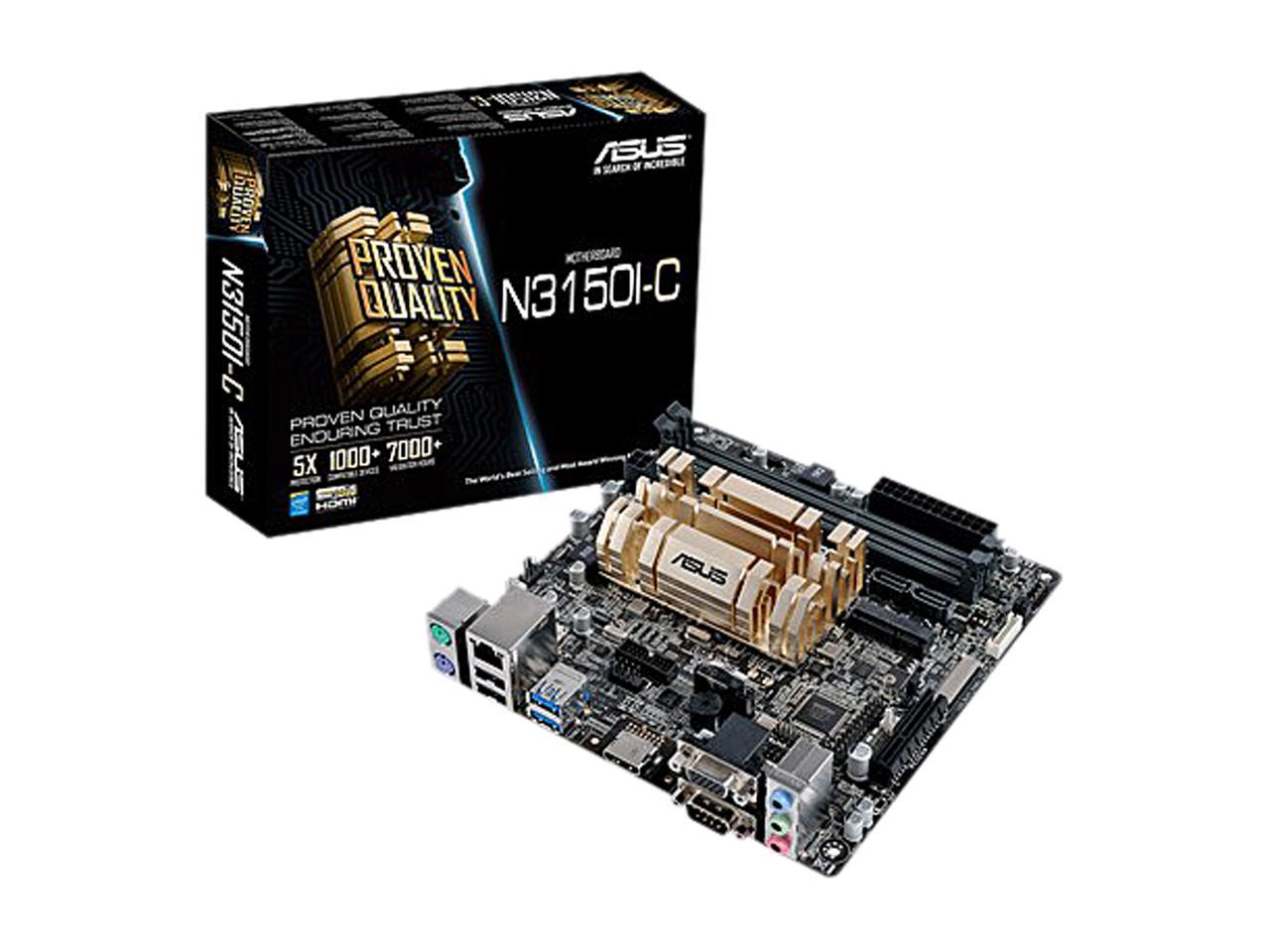

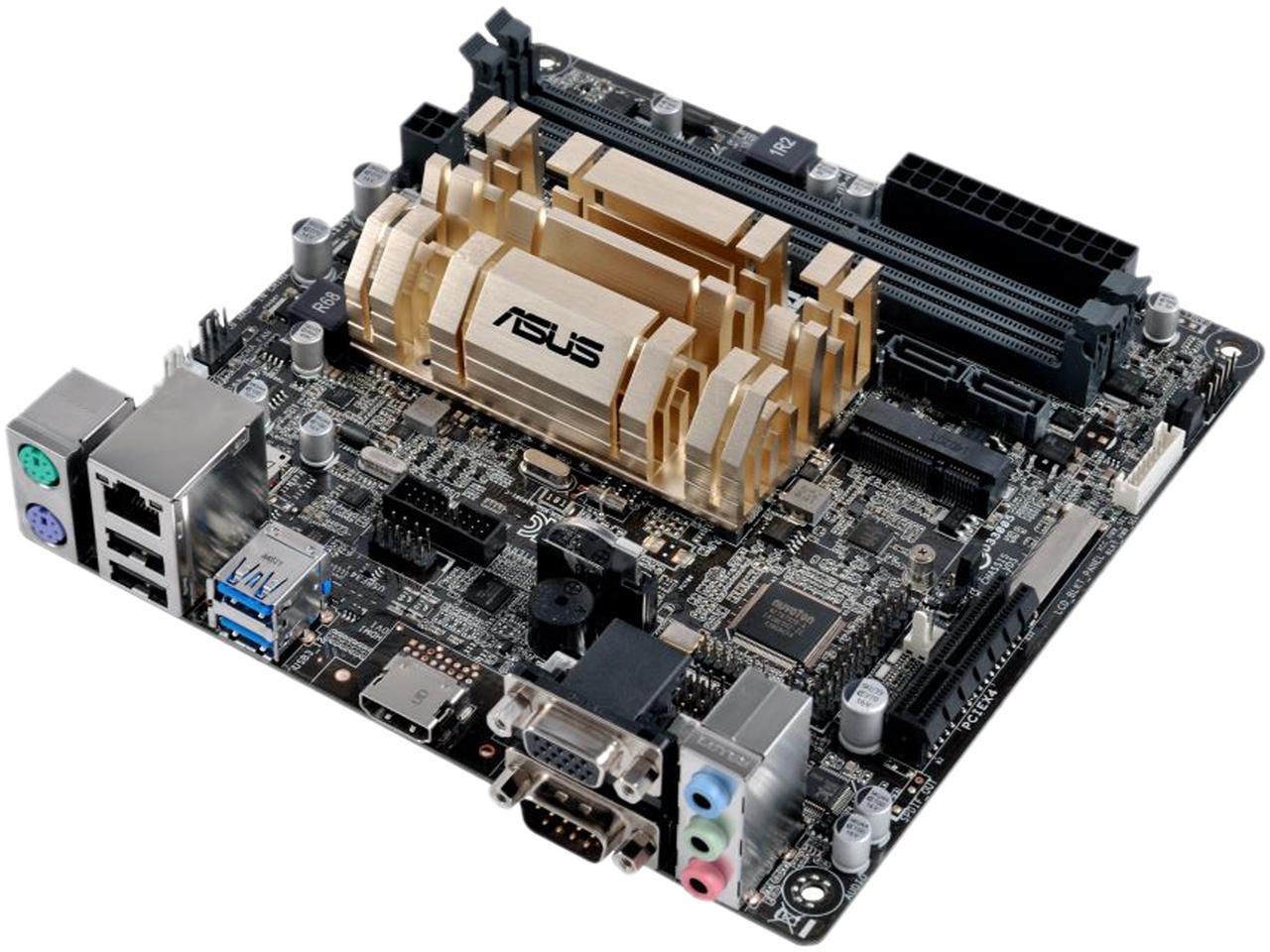

Asus N3150I-C/C/SI integrisani procesor
Šifra artikla: 86242
- Opis
- Tehnička dokumentacija
- Komentari
| Procesorsko ležište | Intel® Celeron® Quad-Core N3150 SoC onboard Processors |
| Memorijski slotovi | 2 x U-DIMM, Max. 8GB, DDR3 1600/1066 MHz |
| Slotovi | 1 x PCIe 2.0 x4 (x1 mode) |
| Skladišni interfejs | 2 x SATA 6Gb/s port(s), dark brown, Supports Intel® Smart Connect Technology |
| Mrežni adapter | Realtek® RTL8111H, 1 x Gigabit LAN Controller(s) |
| Audio | Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC |

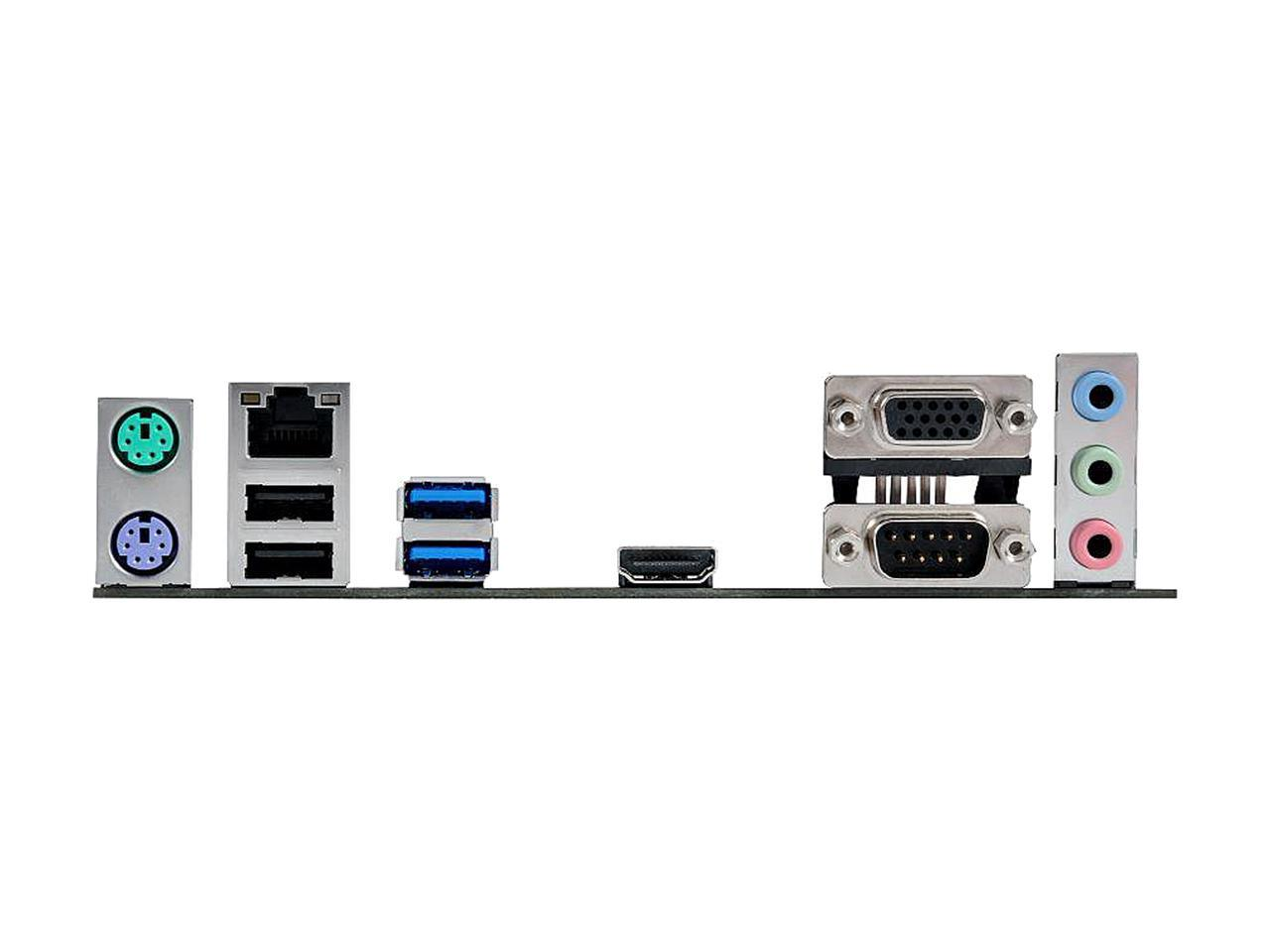

| Povezivanje | 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 1 (blue) 2 x USB 2.0 1 x COM port(s) 3 x Audio jack(s) |
| Interni priključci | 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x TPM header 1 x LPT header 1 x COM port(s) connector(s) 2 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Chassis Intrusion connector(s) 1 x LVDS connector(s) 1 x Buzzer |
| Format | Mini ITX |
| Integrisana grafika | Integrated Graphics Processor Multi-VGA output support : HDMI/RGB/LVDS ports - Supports HDMI with max. resolution 3840 x 2160 @ 30 Hz - Supports LVDS with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 512 MB |
| Reklamacioni period | Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača |
