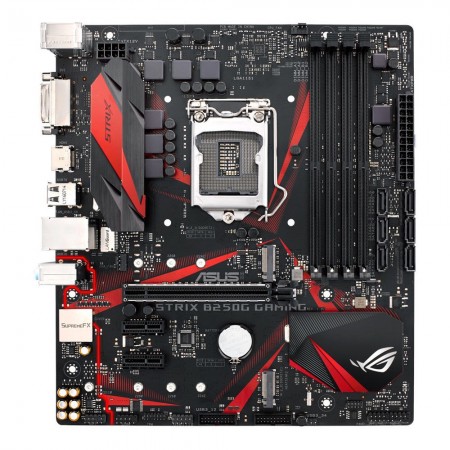

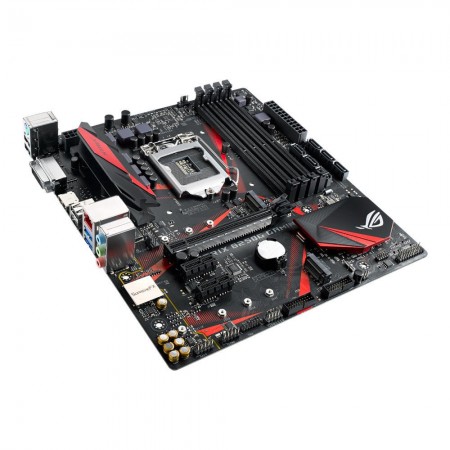

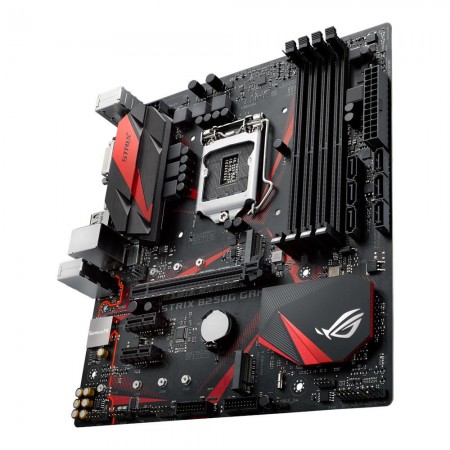

1151 Asus STRIX B250G GAMING
Šifra artikla: 84476
- Opis
- Tehnička dokumentacija
- Komentari
| Procesorsko ležište | Podržava procesore šeste i sedme generacije Intel® Core™ i3/i5/i7, Pentium® i Celeron® sa podnožjem LGA1151 Podržava Intel® 14 nm CPU Podržava Intel® Turbo Boost Tehnologija 2.0 * Intel® Turbo Boost Tehnologija 2.0 zavisi od tipa procesora |
| Čipset | Intel® B250 |
| Memorijski slotovi | 4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory Podržava Intel® Extreme Memory Profile (XMP) *Maksimalna memorijska frekfencija zavisi od procesora |
| Slotovi | 1 x PCIe 3.0/2.0 x1 (x16 mode) 2 x PCIe 3.0/2.0 x1 |
| Skladišni interfejs | Intel® B250 Chipset : 6 x SATA 6Gb/s port(s), Intel® B250 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)* Intel® Optane™ Memory Ready |
| Mrežni adapter | Intel® I219V, Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY) Anti-surge LANGuard |
| Audio | SupremeFX 8-Channel High Definition Audio CODEC S1220A - Dual Headphone Amplifiers - Impedance sense for front and rear headphone outputs - Podržava : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - SupremeFX Shielding Technology - Podržava do 32-Bit/192kHz reprodukciju Audio Feature : LED-lit Audio Shielding: obezbeđuje preciznu analogno/digitalnu separaciju i značajno smanjuje multilateralnu interferenciju (kanali su sa pozadinskim osvetljenjem) Premijum japanski kondenzatori: obezbeđuju topao i prirodan zvuk sa izuzetnom vernošću i jasnoćom |
| Priključci na zadnjoj strani | 1 x PS/2 keyboard/mouse combo port(s) 1 x DVI 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 2.0 2 x USB 3.1 Gen 1 3 x Audio jack(s) |
| Interni priključci | 1 x AAFP connector 2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x TPM connector(s) 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) ( x 4 -pin) 1 x Chassis Fan connector(s) ( x 4 -pin) 1 x 8-pin EATX 12 V Power connector 1 x 24-pin EATX Power connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector |
| Bios | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM 2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F12 PrintScreen function, and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Integrisana grafika | Podržava grafiku instaliranu u procesoru - Intel HD graphics: Dva izlaza : HDMI/DVI port - Podržava HDMI sa maksimalnom rezolucijom 4096 x 2160 @ 24 Hz - Podržava DVI sa maksimalnom rezolucijom 1920 x 1200 @ 60 Hz Maksimalna deljena memorija 1024 MB Podržava Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ |
| Reklamacioni period | Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača |
