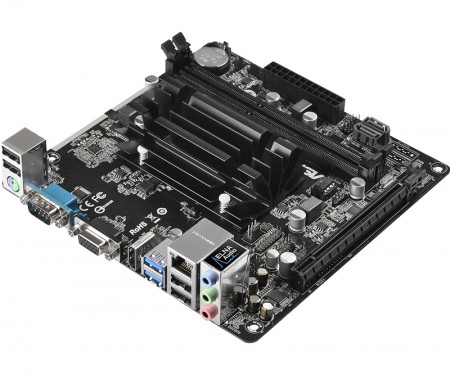

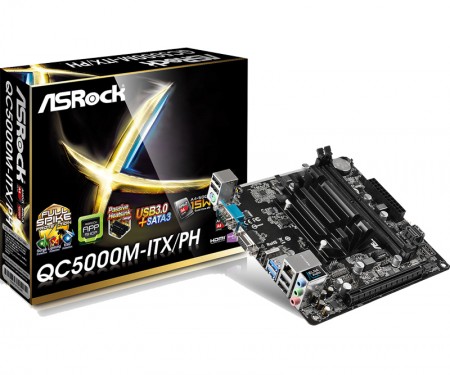

FT3 AsRock FT3 QC5000M-ITX/PH Integrisani CPU
Šifra artikla: 68185
- Opis
- Tehnička dokumentacija
- Komentari
| Procesor | AMD FT3 Kabini A4-5000 Quad-Core APU |
| Čipset | SOC |
| Memorijski slotovi | 2 x DDR3 DIMM Slots, Supports DDR3 1600/1333/1066 non-ECC, un-buffered memory, Max. capacity of system memory: 16GB |
| Slotovi | - 1 x PCI Express 2.0 x16 Slot (PCIE1: x4 mode) |
| Skladišni interfejs | - 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug |
| Mrežni adapter | - PCIE x1 Gigabit RJ45 10/100/1000 Mb/s - Realtek RTL8111GR - Supports Wake-On-WAN - Supports Wake-On-RJ45 - Supports Lightning/ESD Protection (ASRock Full Spike Protection) - Supports RJ45 Cable Detection - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
| Audio | - 7.1 CH HD Audio (Realtek ALC887 Audio Codec)* To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. - Supports Surge Protection (ASRock Full Spike Protection) - ELNA Audio Caps |
| Povezivanje | - 1 x TPM Header - 1 x CPU Fan Connector (3-pin) - 1 x Chassis Fan Connector (4-pin) - 1 x 24 pin ATX Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) |
| Interni priključci | - 1 x PS/2 Mouse/Keyboard Port - 1 x Serial Port: COM1 - 1 x D-Sub Port - 1 x HDMI Port - 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) - 2 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x RJ45 RJ45 Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Format | - Mini-ITX Form Factor - Solid Capacitor design - High Density Glass Fabric PCB |
| Integrisana grafika | - Integrated AMD Radeon™ HD 8330 Graphics - DirectX 11.1, Pixel Shader 5.0 - Max. shared memory 2GB - Dual graphics output: support D-Sub and HDMI ports by independent display controllers - Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz or 4K x 2K (3840x2160) @ 30Hz - Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) - Supports HDCP with HDMI Port - Supports Full HD 1080p Blu-ray (BD) playback with HDMI Port |
| Reklamacioni period | Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača |
