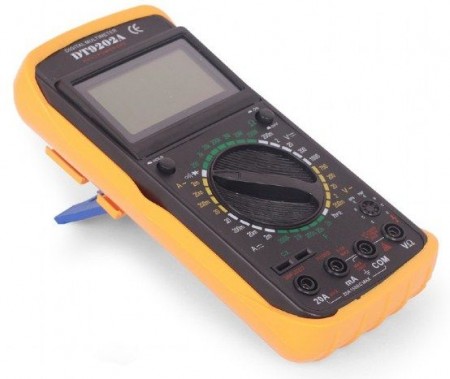

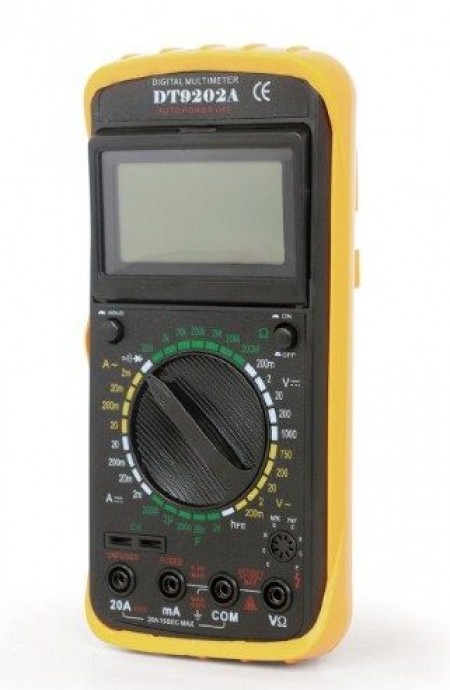

Gembird T-MMP-01 Professional digital multimeter, CATII 500V
Šifra artikla: 95328
- Opis
- Tehnička dokumentacija
- Komentari
Digitalni multimetar, CATII 500V Kompaktan ručni Profesionalni alat Za merenje DC/AC napona/struje, otpornosti, dioda, tranzistora, kapacitivnosti 3 1/2 cifre LCD ekran Max. count 1999 Auto indikacija polariteta Auto power off funkcija Indikator slabih baterija na LCD ekranu Rejting: Cati, 500V DC Voltage: 200mV/2/20/200V ±0.5%, 1000V ±0.8% AC Voltage: 200mV ±1.2%, 2/20/200V ±0.8%, 700V ±1.2% DC Current: 2mA / 20mA ± 1.2%, 200mA ± 1.4%,20A ± 2.0% AC Current: 2mA /20mA ± 1.2%, 200mA ± 1.8%,20A± 3.0% Resistance: 200/2K/200K/2M?±0.8%, 20M?±1.0%, 200M?±5% Diode check: Test current 1.0mA, test voltage 2.8V HFE:1~1000 Max. voltage: 1000VDC or 700VAC between terminal and ground Fuse protection: F 200mA/250V Outside parameter indication: shows "1" on the display Polarity indication: "-" displayed for negative polarity Operating environment: 0 to 40 degrees Celsius Storage temperature: -10 to 50 degrees Celsius Battery type: 9V Dimensions: 189x91x32mm Net weight: 280g
